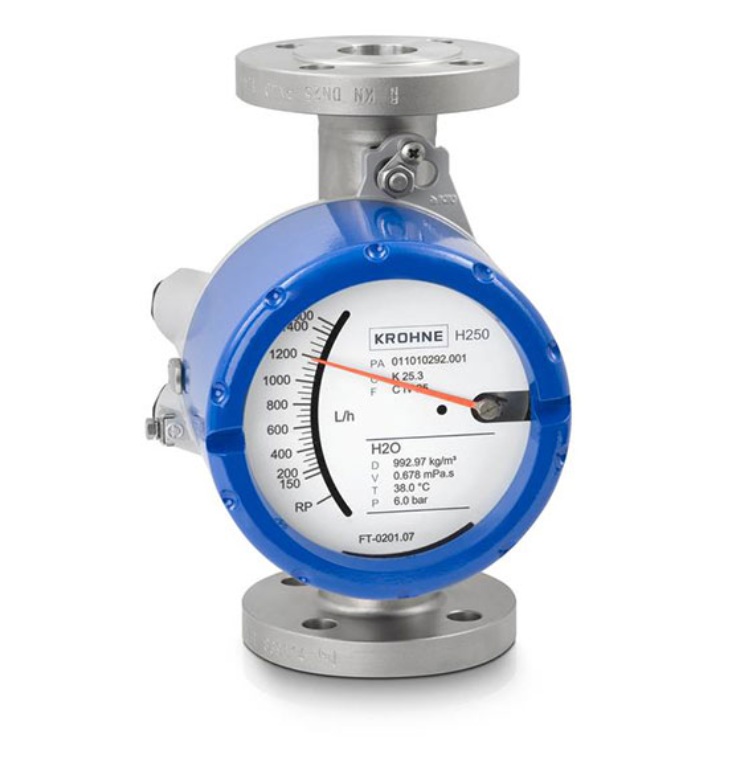

Type H250/F/M40/ESK
Flow direction Vertical (standard)
from bottom to top
Process connection
NS 1 1/2″ clamp connection
ASME BPE clamp ferrule
Type B
inner diameter 34,8 mm / clamp 50,39 mm
Roughness
wetted parts
Ra </= 0,6 μm
(excepted welds)
PED parameter PED/G1/I/A
Gas / liquid
max.pressure PS [bar] 16
TS [°C] 120
Test pressure PT [bar] 25
max. medium temperature 120°C / 248°F
Mounting length 250mm
Metering cone K 25.5
Float CIV 25
Measuring tube Stainless steel 316L (1.4404)
Connection Stainless steel 316L (1.4404)
Float Stainless steel 316L (1.4404)
Float stop Stainless steel 316L (1.4404)
Indication M40
Aluminum die-cast, IP 66/68
Two-layer powder coating (epoxy / polyester)
Cable connection M20x1.5
Transducer type ESK4-T
Signal output in mA (HART 7.4)
for Q = 0% 4
for Q = 100% 20
LC-display
Flow rate
and/or totaliser value
2x digital output Alarm or pulse output
1x digital input
Totalizer start/stop or reset
Supply without seals,
joint clamps / tie bolts and counterparts
…
Certificate of compliance acc. to EN 10204-2.1
…
calibration certificate with 5-points report
measuring error 1.6% according to VDI/VDE 3513-2
…
LIST OF MATERIAL CERTIFICATES
INCLUDING COPIES OF THE 3.1 CERTIFICATES
on pressure retaining wetted metallic semi-finished parts
“in accordance with technical delivery conditions”
Archiving of the 3.1 material certificates for 10 years.
…
SURFACE ROUGHNESS
incl. Inspection Certificate 3.1 / EN 10204
…
Operation manual English
APPLICATION DATA
pressure loss 66.0 mbar
medium Water (H2O)
density 0.997772 kg/l
viscosity 0.955 mPa.s
temperature 22.0 °C
pressure 2.0 bar g
measured range 0.42 … 4.2 m³/h
